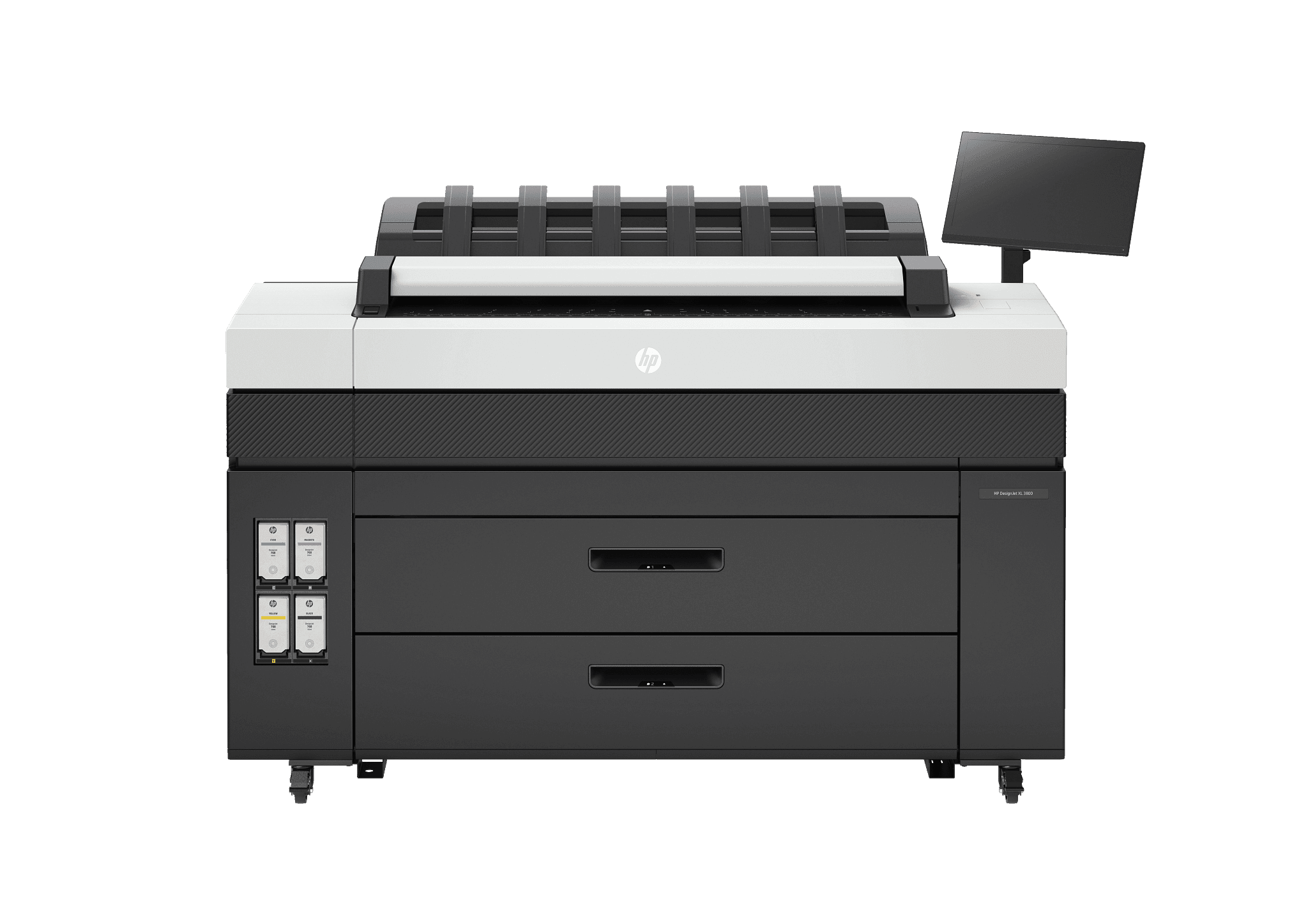

HP DesignJet XL 3800 Multifunction Printer
HP

HP DesignJet XL 3800 Multifunction Printer

Model DesignJet XL X3800

36-inch color large-format MFP, up to 6 D-size pages per minute

ColorWide FormatMFP
Get a QuoteTalk to a DEXpert

Overview

The HP DesignJet XL 3800 is a 36-inch color large-format multifunction printer for teams that print, scan and copy CAD drawings, maps and renderings in volume. It produces up to six D-size pages per minute, and HP quotes a 20-second first page.

DEX supplies the PostScript and PDF-capable version. Two automatic roll drawers, an integrated 100-page stacker and a 15.6-inch front panel keep jobs moving, and a 256 GB encrypted SSD with HP Wolf Enterprise security protects stored files.

Key Features

  • Up to 6 D-size color pages per minute, 360 per hour
  • 36-inch media width with two automatic roll drawers
  • Integrated sheetfed scanner for copy and scan to USB, folder or email
  • Integrated stacker holds up to 100 D-size prints
  • 15.6-inch front panel monitor
  • 256 GB AES-256 encrypted SSD with HP Wolf Enterprise security

Specifications

Specifications

Print speed
Up to 6 D-size pages per minute (360 per hour)
Functions
Print, scan, copy
Max media width
36 in
Print resolution
Up to 2400 x 1200 optimized dpi
Print technology
HP Thermal Inkjet, pigment-based CMYK inks (HP Flex Tech), 500-ml cartridges, 6 printheads
First page out
20 sec
Roll handling
2 spindle-less roll drawers (1+1), automatic front loading; rolls 11 to 36 in wide, up to 656 ft long, 3-in core, max diameter 7 in, max roll weight 33 lb
Media weight
60 to 328 g/m² recommended; thickness up to 0.5 mm
Output
Integrated stacker, A/A4 to E/A0, up to 100 D/A1-size sheets; automatic horizontal cutter
Scan speed
Scan up to 3 in/sec color, 10 in/sec grayscale; copy up to 6 in/sec color, 10 in/sec grayscale (200 dpi)
Scan resolution
Up to 600 dpi; scan to USB, shared network folder or email (JPEG, TIFF, multipage PDF)
Memory / storage
128 GB file processing (based on 8 GB RAM); 256 GB SSD, AES-256 encrypted
Control panel
15.6-in front panel monitor
Line accuracy
±0.1%
