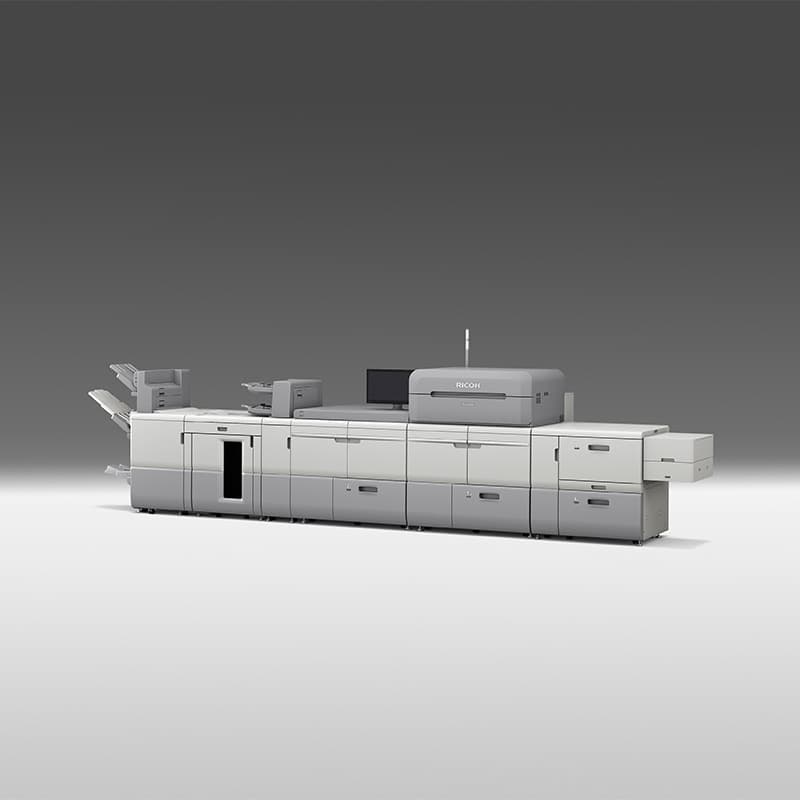

Pro C9500 Color Production Printer
Ricoh

Pro C9500 Color Production Printer

Model Pro C9500

Color sheet-fed production press, 115 ppm standard or 135 ppm upgraded

ColorProductionPrinter
Get a QuoteTalk to a DEXpert

Overview

The Ricoh Pro C9500 is Ricoh USA's flagship toner-based color sheet-fed press, built for commercial printers, print service providers and in-plant operations moving work from offset to digital. It runs at 115 ppm as standard or 135 ppm with the optional Productivity Upgrade Kit, and Ricoh rates it for up to one million pages a month.

It prints on stocks from 40 to 470 gsm, including synthetic and specialty media, and on sheets up to 13" x 49.6" with the oversize tray option. Paper capacity runs from 4,400 sheets to 18,100 with optional vacuum-feed trays, and an optional Auto Color Diagnosis Unit checks image quality, registration and color during a run.

Key Features

  • 115 ppm standard, 135 ppm with Productivity Upgrade Kit
  • Rated for up to 1,000,000 pages per month
  • Media from 40 to 470 gsm, including synthetics
  • 2400 x 4800 dpi VCSEL imaging
  • 4,400 sheets standard, up to 18,100 sheets
  • External Fiery N-50 or N-70 print controller

Specifications

Specifications

Print speed
115 ppm (8.5" x 11"); 135 ppm with optional Productivity Upgrade Kit
Print technology
4-drum dry electrostatic transfer with internal transfer belt; oil-less belt fusing
Print resolution
2400 x 4800 dpi (VCSEL)
Max paper size
13" x 19.2"; up to 13" x 49.6" with oversize tray option
Media weight
40-470 gsm (trays 1-4 and duplex); 52-216 gsm bypass
Standard paper capacity
4,400 sheets (2 x 2,200-sheet trays)
Max paper capacity
18,100 sheets
Duplex
Automatic, 40-470 gsm
Max monthly volume
1,000,000 pages
Duty cycle
1,750,000 pages
Control panel
21" color touchscreen operation panel
Print controller
Fiery N-50 or Fiery N-70 (external, Fiery FS500 Pro)
Power
208-240 V, 50/60 Hz, less than 60 A (30 A x 2)
